tch885-9

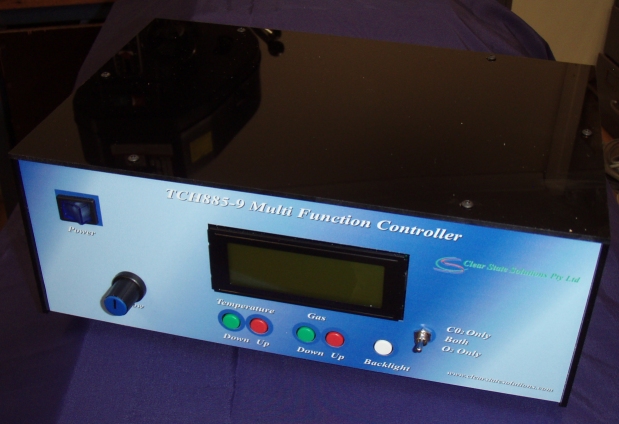

TCH885-9 Brief specifications:
Temperature range  ambient plus 3C to 50C
Temperature tolerance +/- 0.1C
with CO2 option:
CO2 range 0 to 15%
CO2 tolerance +/- 0.1%
with O2 option:
O2 range 0 to 20.9%
O2 tolerance +/- 0.2%
Total gas flow 200, 400, 600 ml/min (switchable)
Dimensions 280 x 190 x 100 mm
tch885ac

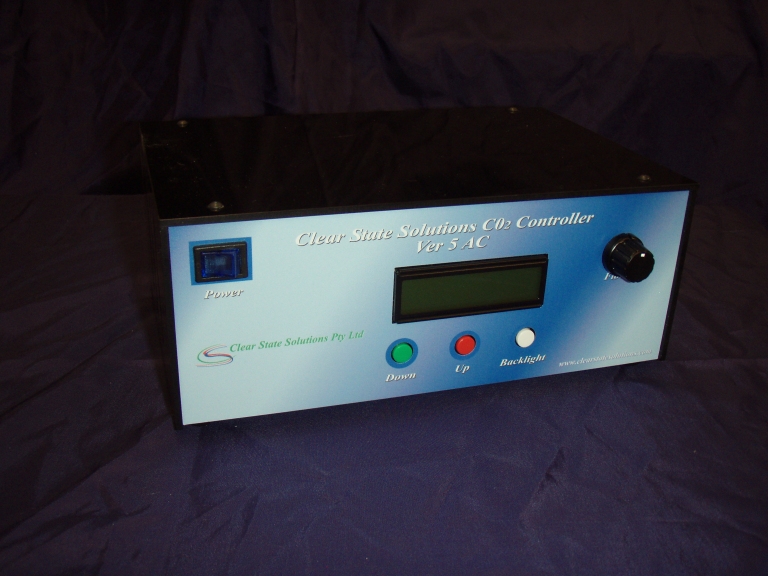

TCH885-5AC Brief specifications:
CO2 range 0 to 15%
CO2 tolerance +/- 0.1%
with O2 option:
O2 range o to 20.9%
O2 tolerance +/- 0.2%
Total gas flow 200, 400, 600 ml/min (switchable)
Dimensions 240 x 160 x 90 mm
humidification

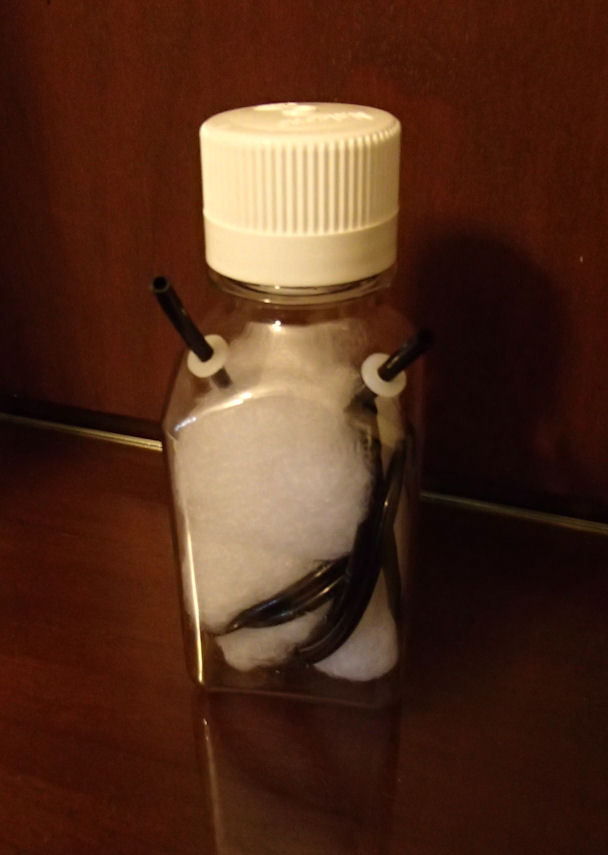

Humidifation bottle.
250 ml bottle with 150 ml capacity. Filled
with siliconised polyester
 fibre for increased water surface area.
Connection tubes
are 4 mm OD.
heater

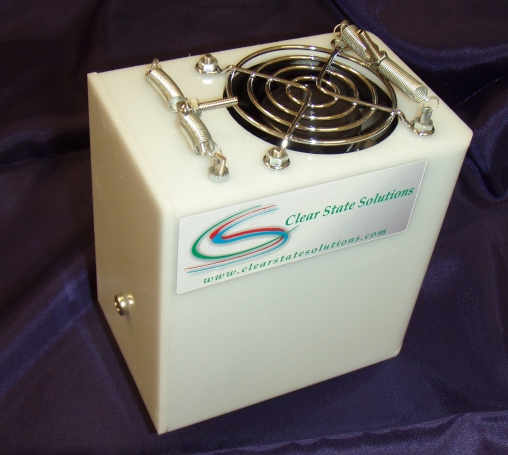

Heater specifications
Air flow approximately 370 l/min
High temperature cut out 70C
Dimensions 100 x 103 x 68 mm
o2 cell

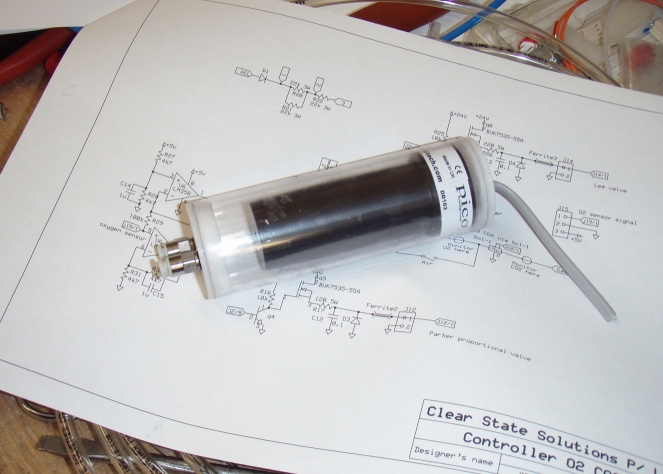

O2 cell for O2 options in TCH885-9 or
TCH885-5AC

sample chambers
Sample chambers are designed as required. Material is
Aluminium or a combination of acrylic and acetyl.
Lid windows are polycarbonate. Gas seals are silicon rubber.
Please contact us for further information.
chambers

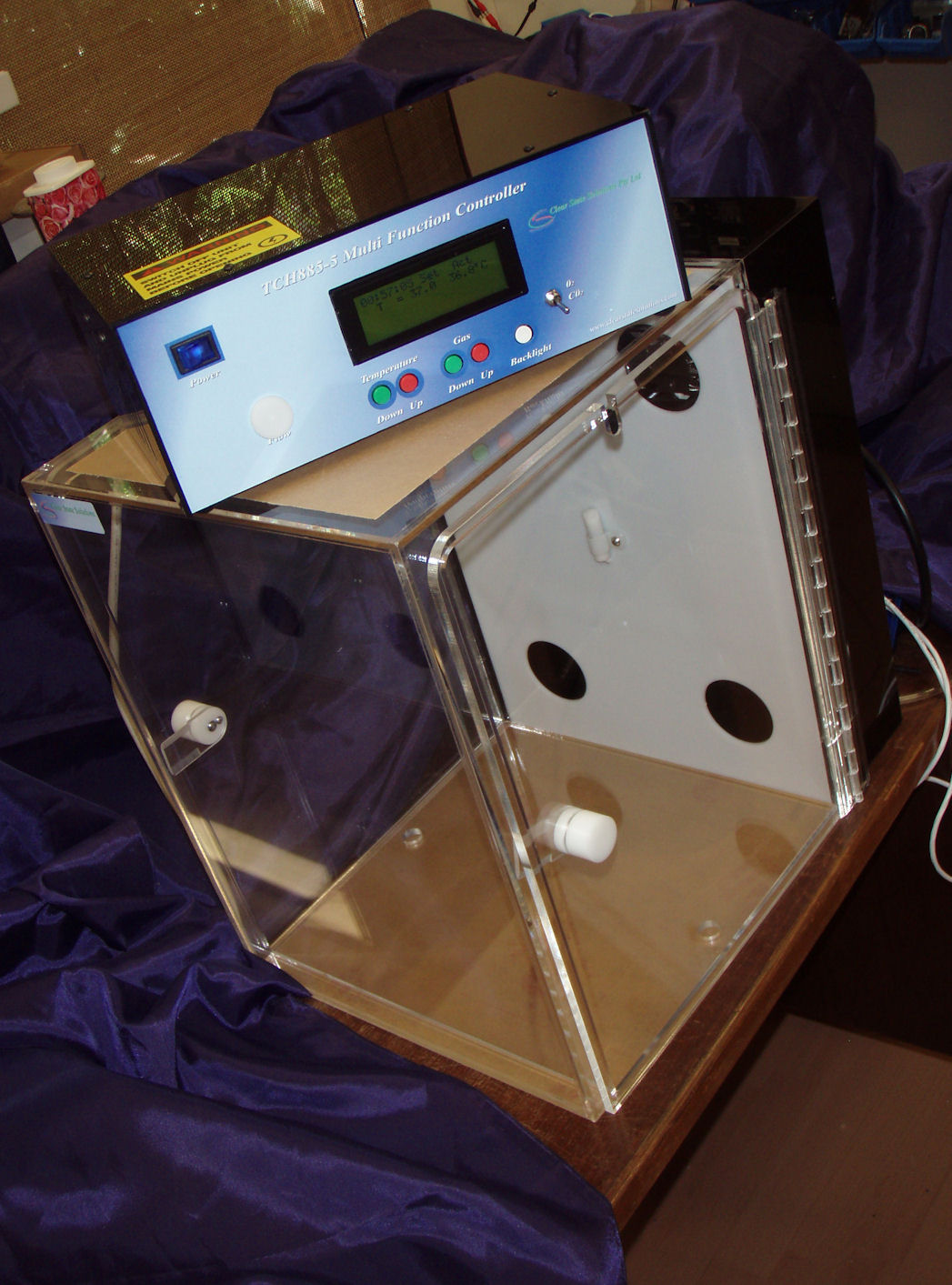

Incubation chambers are designed to suit the
particular installation. We design for all
manufacturers. Material is typically 6mm acrylic
of any colour with some polycarbonate and
acetyl components. If seals are installed, they
are of silicon rubber.
Please contact us for further information.
special
Special projects, please contact us for
 more information.
